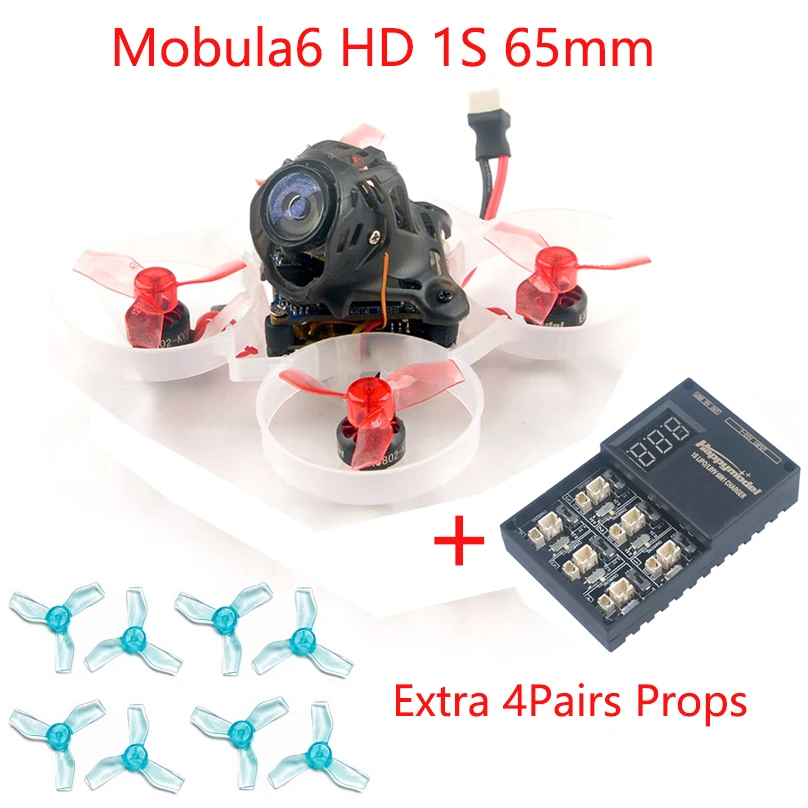

JMT Mobula6 HD Mobula 6 1S 65mm Brushless Bwhoop FPV Racing Drone with 4in1 Crazybee F4 Lite Runcam Nano3 Preorder Happymodel

From R2435.15
  • Color:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

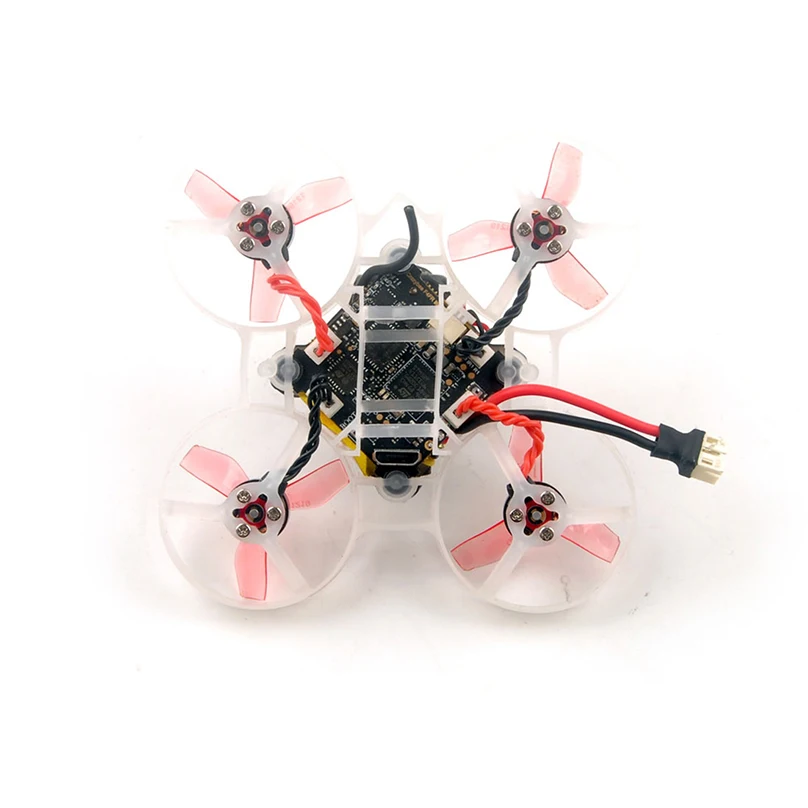

    Happymodel Mobula6 Mobula 6 1S 65mm Brushless Bwhoop FPV Racing Drone with AIO 4in1 Crazybee F4 Lite Runcam Nano3 Drone



    Note: Order dealing time is about 15-20 days ,Pls don’t place the order if your mind it. Thanks!                                              there is mobula6 and mobul6 hd version, pls choose which one you like

                        th

    Features:

    AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX

    Extreme light 1S 65mm Brushless whoop only 20g

    Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera

    Smooth and powerful

    Compatible for 1S Lipo/LIHV

    Camera Angle adjustable



    Specifications:

    Brand Name: Happymodel

    Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
    Wheelbase: 65mm
    Size: 80mm*80mm*37mm

    Weight: 20g

    Receiver option:

    Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)

    Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)

    Motor speed option:

    SE0802 KV25000(Race Edition)

    SE0802 KV19000(Regular Edition)



    Package includes:

    Item Name

    Qty

    Mobula6 1S 65mm whoop Drone Frame

    1

    SPI Receiver Option1: Crazybee F4 Lite FC built-in Frsky SPI D8 RX

    1

    SPI Receiver Option2: Crazybee F4 Lite FC built-in Flysky SPI RX

    SE0802 KV19000 or KV25000 brushless motor

    4

    Gemfan 1219-3 Propellers(4cw+4ccw)

    1

    Runcam Nano3 1/3 CMOS 800TVL camera

    1

    5.8G 25mw 40ch vtx (Flight controller built-in)

    1

    1S 300mah or 250mah 30C LiHV Battery

    4

    1S Lipo/LIHV USB Charger

    1

    Propeller disassemble tool

    1















    Spare parts specifications:

    Motor

    Mode: SE0802 19000KV or KV25000
    Configu-ration:9N12P
    Stator Diamter:8mm
    Stator Length:2mm
    Shaft Diameter:Φ1mm
    Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
    Weight(g):1.9g
    No.of Cells(Lipo):1S only

    Propellers

    Gemfan 1219-3

    Center Thickness:5mm

    Prop Disk Diameter:31mm

    Center Hole Inner diameter:1.0mm

    Weight:0.28g

    Flight controller

    (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR

    (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS
    MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
    Sensor: MPU-6000(SPI connection)
    Board size: 28.5 * 28.5MM
    Power supply: 1S battery input (DC 2.9V4.35V)
    Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
    Built-in Betaflight OSD(SPI Control)
    Built-in 5.8G VTX
    Built-in SPI Frsky/Flysky receiver
    Built-in 5V 1A BEC
    Built-in voltage detection

    Onboard 4in1 ESC

    MCU upgraded to EFM8BB21
    Power supply: 1S LiPo/LiPo HV

    Current: 5A continuous peak 6A (3 seconds)
    Support BLHeliSuite programmable
    Factory firmware: O_H_5_REV16_7.HEX
    Default protocol: DSHOT600

    Onboard Frsky SPI D8 receiver Version

    SPI BUS receiver Frsky D8 compatible
    Compatible Non EU transmitter D8 model

    Channels: 8ch
    Failsafe support
    No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

    Onboard Flysky SPI receiver Version

    SPI BUS receiver
    Protocol: AFHDS and AFHDS-2A Switchable
    Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
    No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m
    Failsafe support

    Onboard 5.8g VTX

    Output power: 25mw
    Frequency: 40CH
    Input voltage: 3.3V 5.5V
    Current consumption: 300mA(type)
    Frequency: 5.8GHz 5bands 40 channels
    With Race band

    Smartaudio ready

    Runcam Nano3

    Model: RunCam Nano 3

    Image Sensor: 1/3″ CMOS

    Horizontal Resolution: 800TVL

    Lens : 2.1mm(M8) FOV 160°

    Signal System: PAL/NTSC Non Switchable

    S/N Ratio: >50dB

    Electronic Shutter Speed: Auto

    Auto Gain Control (AGC): Auto

    Min. Illumination: 0.01Lux@1.2F

    D-WDR: Auto

    Day/Night: Color

    Power:DC 3-5.5V

    Current: 110mA@5V  120mA@3.3V

    Housing Material: ABS

    Net Weight: 1.2g

    Dimensions: L14mm*W14mm*H9mm

    Lipo Battery

    Capacity:300mAh or 250mah
    Voltage:3.8v
    Continuous Discharge Rate: 30C
    Size: 57mmx12mmx7mm
    Weight: 8g

    Connector: PH2.0
